Preparing Synology NAS

Virtual Machine Manager (VMM)

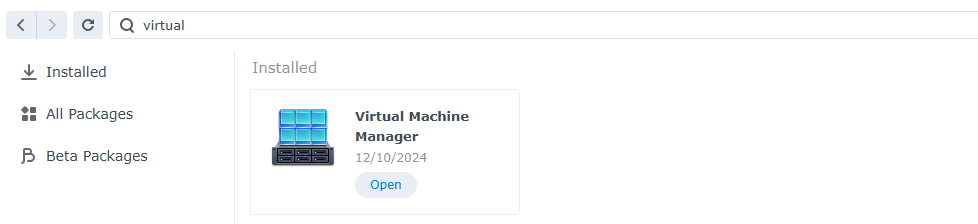

Ensure you've installed the Virtual Machine Manager (VMM) package

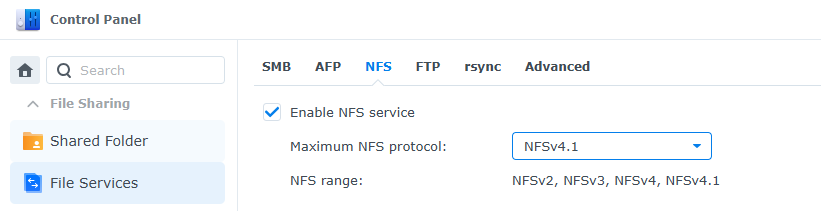

Check NFS Version


Ensure NFSv4.1 is enabled

PBS Service Account

We'll create a service account for use with CIFS in case you prefer that option. In a later step, however, I'll be using NFS, which doesn't require a user credential.

Group

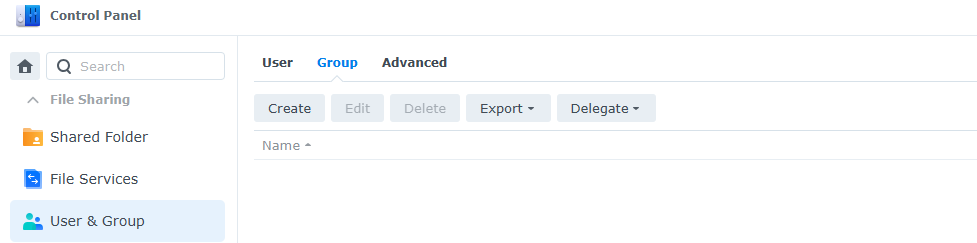

Open Control Panel > User & Group > Group > Create

We haven't created the service account yet, so skip when prompted to add members.


Assign Read/Write to the shared folder created before

You can assign No Access to any other shared folders you wish to deny access to

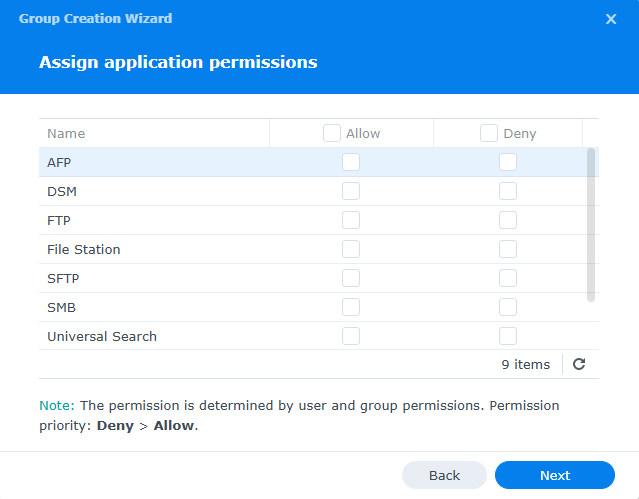

Leaving all unchecked, as I'll be configuring NFS permissions on the shared folder

User

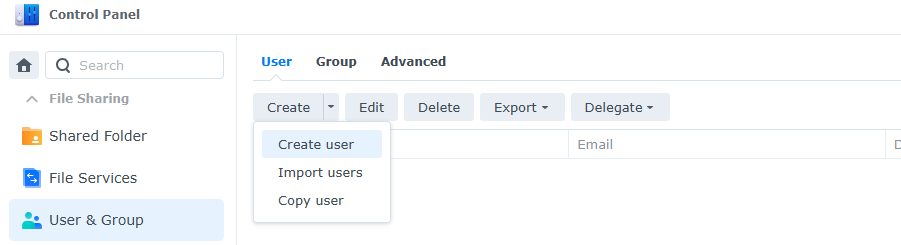

Open Control Panel > User & Group > Create user

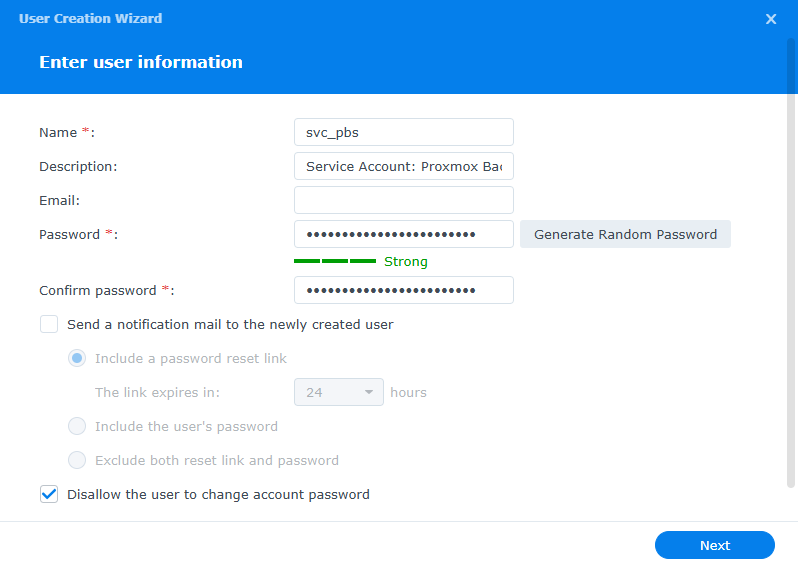

Set a strong password and save in your password manager


Assign to PBS_Users group created before

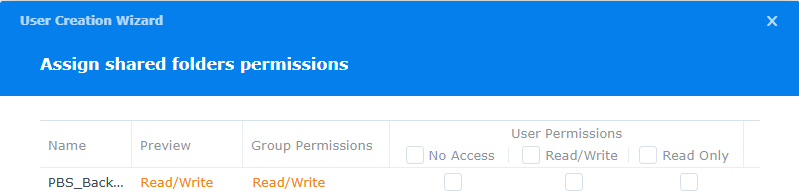

Read/Write Permissions already inherited from group

Shared Folder

Create the Shared Folder

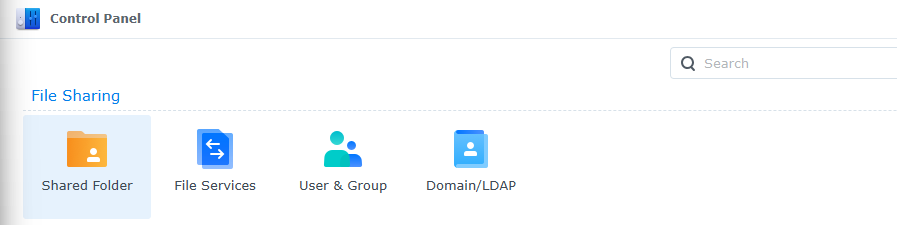

Open Control Panel > Shared Folder

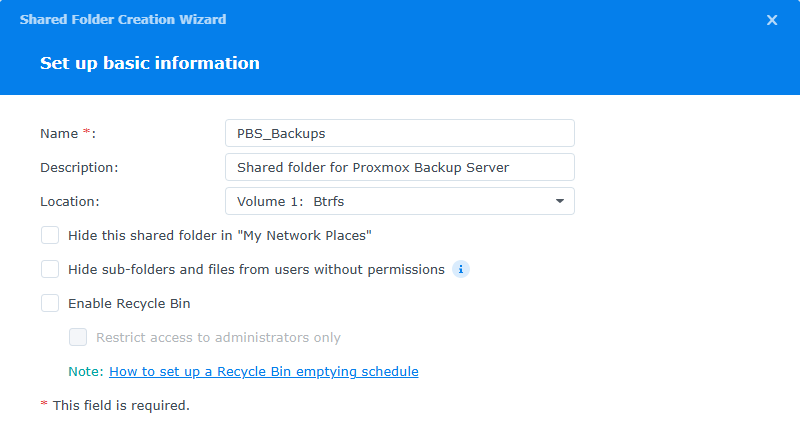

Create Shared Folder

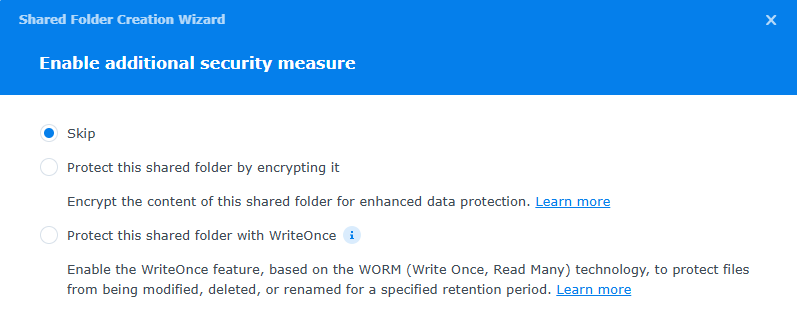

Skip encryption, as PBS can encrypt the backups

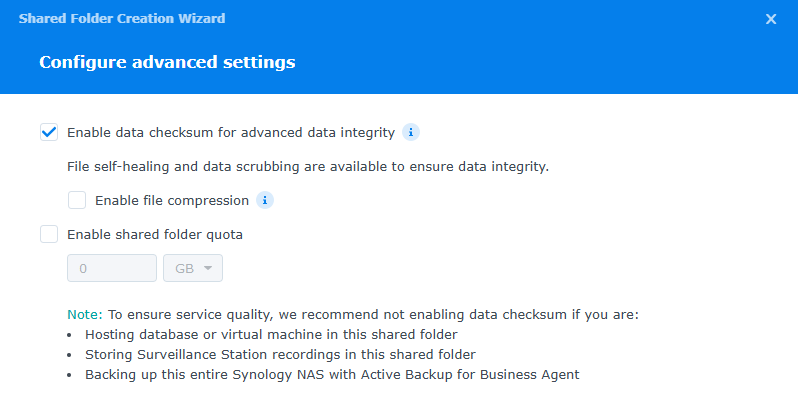

IronWolf HDD are formatted with Btrfs, therefore support checksums
Skip compression, since PBS already compresses backups
