Clustering: Same ZFS Pool on All Nodes


Example Configuration

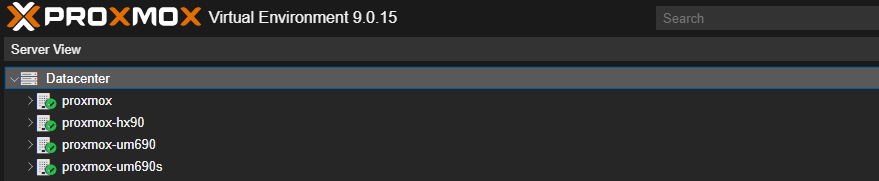

Showing clustered PVE nodes

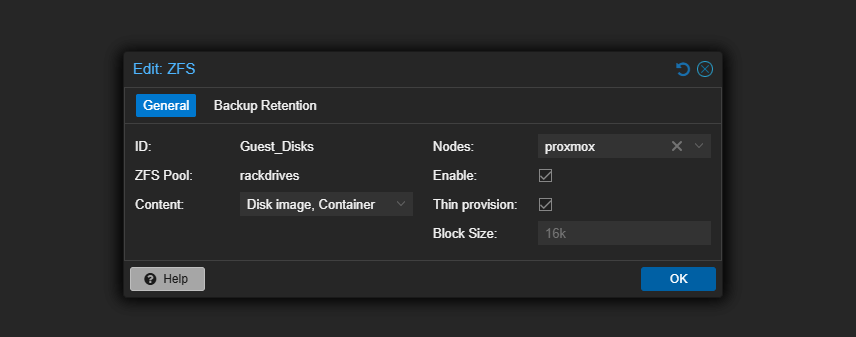

I have a ZFS volume called Guest_Disks that stores Disk image and Container data that is allocated to the rackdrives ZFS pool

Migrating VMs between Nodes

The Problem

In order to migrate VMs and LXCs between PVE nodes, they need to have identical target storage configurations.

Existing Node Configuration

  • proxmox node has a ZFS pool with name rackdrives mounted to /rackdrives
  • proxmox node has a VM with ID 107
  • 107 disk is stored on a ZFS volume called Guest_Disks
  • The ZFS volume is mapped to the /rackdrives pool


ZFS pool rackdrives is mounted to /rackdrives on the existing node


A ZFS volume mapped to the ZFS pool rackdrives for storing VM and LXC disks / mountpoints

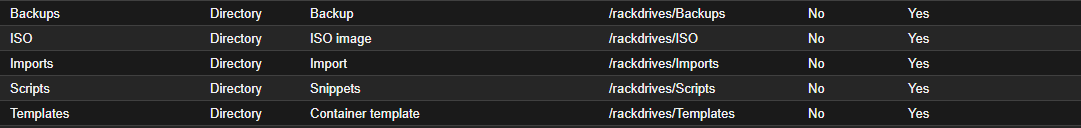

Directories for storing various content mapped as subdirectories under /rackdrives/ on existing node

New Node Configuration

When the new node joins the PVE cluster, information in /etc/pve/* is shared with the new node. proxmox shares the storage configurations in /etc/pve/storage.cfg, which creates the /rackdrives directories and volume(s) shown below.

  • proxmox-hx90 joins the PVE cluster
  • proxmox node shares information from /etc/pve/* with proxmox-hx90
  • /etc/pve/storage.cfg points several ZFS volumes and directories to /rackdrives
  • proxmox-hx90 creates the ZFS directory structure locally

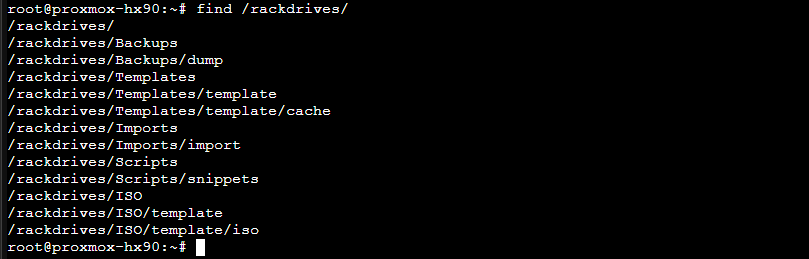

Showing PVE has mirrored the ZFS directories on the new node


So, even though PVE has created /rackdrives it's mapped to /rpool/ROOT/pve-1 and writing data to the wrong disks.

Even though proxmox-hx90 has just joined the cluster, the /rackdrives mountpoint already exists, because PVE nodes share storage information between themselves

Creating ZFS Pool on New Node

Errors in the GUI

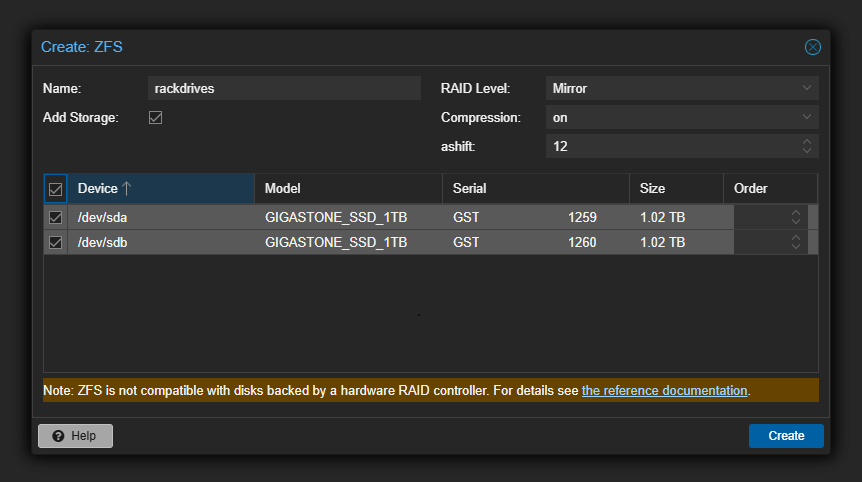

If I use the GUI to create rackdrives on my new node(s), it will try and set the mountpoint to /rackdrives. However, this will fail, because the /rackdrives mountpoint already exists (as shown above).

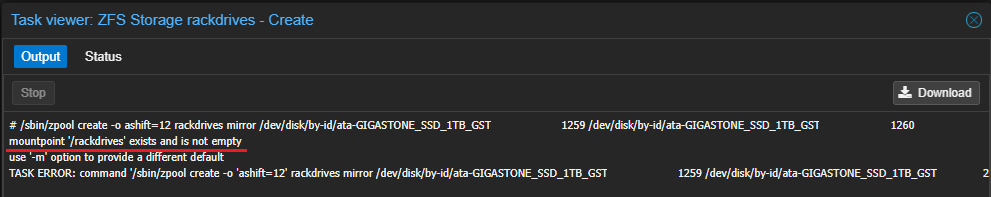

Advises us to use -m to specify a custom mountpoint, which is not an option in the GUI

The Solution

Create ZFS Pool in the Shell

Using the shell, we can create a placeholder mountpoint with the name rackdrives and then shift the mountpoint after creation.

find /dev/disk/by-id | grep -v part

List disks by ID and find your target disk(s), usually should be able to tell by manufacturer name

zpool create -m /rackdrives-tmp -o ashift=12 rackdrives mirror \
/dev/disk/by-id/ata-GIGASTONE_SSD_1TB_GSTMFAACMI24451259 \
/dev/disk/by-id/ata-GIGASTONE_SSD_1TB_GSTMFAACMI24451260

You can also copy and paste the command from the error log to target the correct disk(s)

  • Create a ZFS pool called rackdrives mounted to /rackdrives-tmp
  • In a mirror configuration
  • Targeting two disks
zfs set mountpoint=/rackdrives rackdrives

Change the mountpoint from /rackdrives-tmp to /rackdrives

zfs set compression=lz4 rackdrives

Enable compression

rm -rf /rackdrives-tmp

Remove the placeholder mountpoint

Change Storage Settings in Datacenter

Finally, go to the Datacenter view and click Storage. Now, you can safely indicate that the Guest_Disks target can be shared on the rackdrives pool on all nodes. This will allow live migration to complete without any issues.

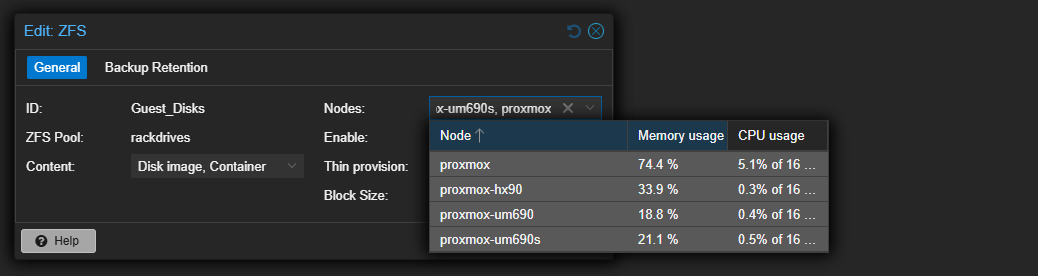

Share with your node(s) after configuring with the correct ZFS pool


Do the same for your ZFS mounted directories
